Probe Positioners / Manipulators

Probe Positioners – Solutions to Meet Any Testing Needs

Micromanipulator offers a variety of probe positioners (manipulators) designed to meet personal preferences, application demands and budget needs. Our probe positioners range from our economy Model 110 manipulator right through to the multi-versatile mmW manipulator. All of our manipulators provide the highest stability available on the market and feature direct leadscrew lead nut drives and ergonomic designs.

Please contact us if have any questions or need further information regarding our extensive selection of high-quality probe positioners, holders and tips.

Browse Our Probe Positioners/Manipulators

Showing all 14 results

425 Manipulators
Price range: $2,570.00 through $2,775.00 (excl. 0% Tax)
Probe Positioners / Manipulators
- Compact footprint
- .5″ XYZ Travel
- Left/right neutral (all controls are rear of manipulator)
- True linear motion
- Recommended for probing < 1-micron targets
- 100 TPI XYZ drive
- Available in Vacuum, Magnetic & Switchable Magnetic base.
- Vacuum Manipulators come with 12″ vacuum tube and connector.
More Info
525 / 2525 Manipulators with Adjustable Nose Piece
Price range: $3,250.00 through $4,070.00 (excl. 0% Tax)
Probe Positioners / Manipulators
- Quickly lift & lower probes with “Quick-Z” feature
- .5″ XYZ Travel
- Fully adjustable nose piece (rotate, height)
- Left/right neutral (all controls are rear of manipulator)
- True linear motion
- Recommended for probing < 1-micron targets
- 100 TPI (525) and 200TPI (2525) XYZ drive
- Vacuum, Magnetic, & Switchable Magnetic base
- Vacuum Manipulators come with 12″ vacuum tube and connector.
More Info
High Frequency Manipulators
Price range: $4,440.00 through $5,115.00 (excl. 0% Tax)
Front, Probe Positioners / Manipulators
- Left/right neutral
- .5″ XYZ Travel
- Recommended for probing < 1-micron targets
- 100 TPI XYZ drive
- Vacuum, Magnetic, & Switchable Magnetic base
- Terminates in 3-hole mounting ledge with or without 90° angle for popular coplanar probe heads.
- Straight configuration for left/right manipulator placement.
- Supports GS, SG, GSG, and other popular probe head configurations.
- Planarity (Roll) adjustment = +/- 5-degree. Resolution = 0.005 degrees per degree rotation.
- Theta (Yaw) adjustment: Range = +/- 5 degrees. Resolution = 0.005 per degree rotation
More Info
Micro Manipulator
$895.00 (excl. 0% Tax)
Probe Positioners / Manipulators
- Rectilinear motion
- 50 T.P.I. (thread per inch) X-Y-Z drive
- 0.4 inch (10mm) maximum travel per axis X-Y-Z
- Left/Right options
- Magnetic base
More Info
MM-MTR-POS
$10,985.00 (excl. 0% Tax)
Probe Positioners / Manipulators
- Rectilinear motion
- 100 T.P.I. (thread per inch) X-Y-Z drive
- 0.5 inch (10mm) maximum travel per axis X-Y-Z
- Switchable magnetic base
More Info
8800-FPC-ADJ8
$4,225.00 (excl. 0% Tax)
Probe Positioners / Manipulators

Probe card holder. Adjustable to support 4.5″ – 6″ wide probe cards.

More Info
BMSQ-MOD
$900.00 (excl. 0% Tax)
Probe Positioners / Manipulators

Scope mounting, VERSA-BASE

More Info
MM-R-S850-V0
$4,185.00 (excl. 0% Tax)
Probe Positioners / Manipulators

Richter Optica S850 trinocular stereo zoom microscope. 8x50x zoom. 0.4X focusing c-mount adapter. Up to 300X magnification.

More Info
Model 6
$165.00 (excl. 0% Tax)
Probe Positioners / Manipulators

Collet shaft assembly, includes 1″ shaft, Collet closer, and Model 5 collet

More Info
ST-CAM5-USB
$1,570.00 (excl. 0% Tax)
Probe Positioners / Manipulators

CMOS Camera 1/2″ CCD; 3.0 M Pixel, USB 2.0 Output. Includes software. Requires computer. Customer to supply computer. Power supplied from USB Port.

More Info

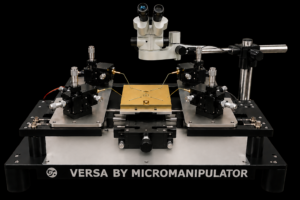

VERSA-BASE
$11,900.00 (excl. 0% Tax)
Probe Positioners / Manipulators

VERSA BASE versatile probe station

More Info

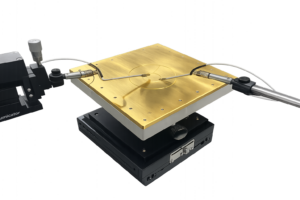

VERSA-SQ-CHK-9
$3,350.00 (excl. 0% Tax)
Probe Positioners / Manipulators

Wafer chuck, ambient, square, 9”. Supports simultaneous hold down of wafers, wafer pieces, individual die, calibration substrates, cleaning substrates, and more. 5 independently controlled vacuum zones.

More Info
VERSA-XSTGZ-8-DBL
$2,980.00 (excl. 0% Tax)
Probe Positioners / Manipulators

High Resolution XYZ translation stage for VERSA systems.

More Info
110/210 Manipulators
$1,680.00 (excl. 0% Tax)
Probe Positioners / Manipulators
- Miniarc motion
- 32 T.P.I. (thread per inch) X-Y-Z drive
- 0.4 inch (10mm) maximum travel per axis X-Y-Z
- Left or Right handed
- Vacuum base
More Info

As you can see from our extensive range of probe holders, Micromanipulator has a product suited for any application. Among our selection, we have probe holders with pin jack, spring load, or set screw tip insertion. Depending upon your test requirements, single wire, coaxial, triaxial, coplanar, certified triax or Kelvin configurations are available.

We also manufacture straight or bent probe holders as well as single unit holders such as our Model 44 with a fixed probe tip that is engineered for high frequency or low level signal testing. With a frequency range from DC to 3 GHz, this economical probe is ideal for the most common microwave tests. In fact the Model 44 has so many options; it is almost a custom probe.

The Model 79 is one of our most popular probe holders and offers the choice of coaxial, triaxial, or Kelvin (single point dual wire) as well as the option of standard attack angle or on-axis probe clamps. Users can select a style from standard temperature or high temperature application probe holders.

If you do not see the information you need regarding one of our probe holders, please give us a call. Our engineers are more than happy to answer any questions you may have.

Micromanipulator not only invented analytical probing in 1956 but we are the leading name in the field. We reliably deliver the tools and life cycle support the semiconductor industry depends on. Part of our company’s philosophy and what drives our success is an unfaltering commitment to our customers’ satisfaction. We offer the most comprehensive line up of accessories available on the market including our excellent range of probe holders.

Micromanipulator is a leading supplier of analytical probe tips to the Semiconductor and OEM markets worldwide. Our extensive experience stretches to the roots of the semiconductor industry with our founding in 1956. Our application experience is extensive and you’ll enjoying leveraging performance enhancing IP and technology that is available only from Micromanipulator.

Our probe tip portfolio is extensive with over 90 probe tip selections available. Whether you need low resistance, high power, low current, high frequency, durability, high or low temperature contact optimization, and whether your application is high volume production support, a high value critical FA return, or somewhere in between, we have the right tip.

Take advantage of our on-line store to save time. Not sure which one you need or don’t see the one you want in the on-line store? Call us or send us an e-mail. You will find our staff knowledgeable and eager to help!

Micromanipulator not only invented analytical probing in 1956 but we are the leading name in the field. As such we reliably deliver the tools and life cycle support the semiconductor industry depends on. Part of our company’s philosophy and what drives our success is an unfaltering commitment to our customers’ satisfaction. We offer the most comprehensive line up of accessories available on the market including a range of high-quality probe tips.

As you see from above, we have probe positioners to meet any budget or performance requirements. The economy Model 110 offers a low acquisition cost and small footprint for easy placement. Our medium range probe positioners offer industry leading flexibility and performance with 7 possible setup and positioning adjustments.

The Model 2525VM-2 has excellent COO for high-performance applications including sub-micron tests as well as a one-handed, left/right neutral operation. Our “Wave” series manipulators feature X-Y and Z leadscrew-lead nut control plus theta and planarity controls for alignment of microwave, multi-probe or mini-probe cards (such as Celadon’s “Versa Tile” and coplanar probes).

The probe positioners are stabilized by a vacuum or magnetic base and are used to support the probe holder. They are available in manual, motorized or programmable versions. Furthermore, to permit different probe holder shank widths to be firmly attached to the manipulator, a collet and collet shaft are used. At Micromanipulator the collet shafts are included with our manipulators and applicable collets are included with probe holders.

Please contact us if have any questions or need further information regarding our extensive selection of high-quality probe positioners, holders and tips.

At Micromanipulator we not only invented analytical probing in 1956 but are the leading name in the field. We expertly deliver the tools and life cycle support the semiconductor industry depends on. Part of our company’s philosophy and what drives our success is an unfaltering commitment to our customers’ satisfaction. You will find just what you need with our comprehensive range of probe holders, tips, and probe positioners.

Probe Stations, Consumables, Accessories and Support

When you buy a wafer probe station from Micromanipulator you are also getting our over 60 years of collective experience in the field of analytical probing. This means that every one of our customers benefit from our “Full Life-Cycle Support,” which starts from concept, to production, right through to maintenance.

The concept stage starts with our exceptional team of experienced engineers who design, develop and manufacture probe stations that offer innovative features not found in other manufacturers’ products. One example is our top-of-the-line, 2210-LS System Level Probe Station that is the world’s first true system-level probe station with above and below ambient temperature capabilities.

Micromanipulator’s consumables are part of our life-cycle and include passive probe holders, active probe holders, high frequency probe holders and probe tips. We recognize that choosing the right accessories for a application is critical so we strive to offer the best selection of accessories on the market today. Whether it is personal preference, measurement equipment interface requirements, application demands or budget needs, you will find it at Micromanipulator.

Finally Micromanipulator’s Full Life-Cycle Support includes receiving a top-quality on-site technical support team. In addition to on site support, our engineers are available to answer questions about our probe stations and accessories and to help determine the best products for your needs.
